Pigtail Strain Relief Bushings

Click the product name or part number below to request a quote.

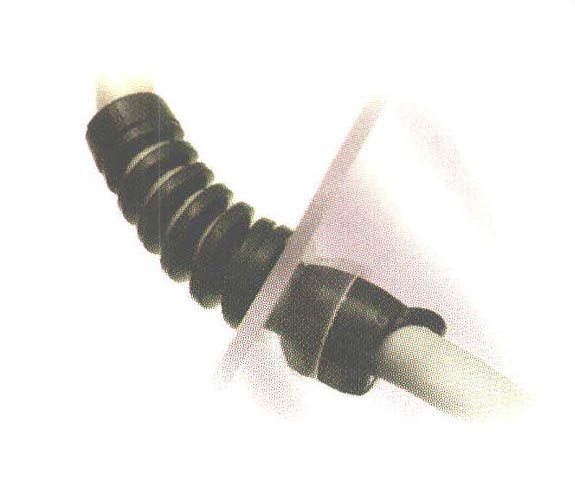

For Flat Cables, With Integral Nylon Spring
  • Protects the lifeline of your electric/electronic products by absorbing forces of pull, push, twist, and FLEX.
  • Not recommended for applications where the power supply cord is subject to whipping or jump rope" type motion.
  • Adds reliability, longevity, and safety. Will pass CSA’s 50000 cycle "vacuum cleaner" test (C22.2 No. 67).
  • Securely anchors, insulates, and protects cables at panel entry points.
  • Integral nylon spring eases the cable into a lazy bend; prevents sharp bending and assures longest cable and product life.
  • Standardize panel design! Fill unneeded SR mounting holes with Heyco Double "D" Plugs.
Filter:
  Product Name  Color  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]  Dimension B [inches]
1541
SR 4N-7 BLACK
Black  SR 4N-7  0.5  12.7  0.465  Add to Quote

1542
SR 4N-7 WHITE
White  SR 4N-7  0.5  12.7  0.465  Add to Quote

1590
SR 5N-7 BLACK
Black  SR 5N-7  0.500|0.500 - 0.515  12.7|12.7 - 13.1  0.45  Add to Quote

1593
SR 5P-7 BLACK
Black  SR 5P-7  0.500 - 0.515|0.500  12.7 - 13.1|12.7  0.45  Add to Quote

1596
SR 6N-7 BLACK
Black  SR 6N-7  0.625  15.9  0.55  Add to Quote

1602
SR 6P-7 BLACK
Black  SR 6P-7  0.625  15.9  0.55  Add to Quote

1599
SR 6N3-7 BLACK
Black  SR 6N3-7  0.625  15.9  0.55  Add to Quote

1605
SR 6P3-7 BLACK
Black  SR 6P3-7  0.625  15.9  0.55  Add to Quote

1611
SR 7P-7 BLACK
Black  SR 7P-7  0.750|0.750 - 0.781  19.0 - 19.8|19.0  0.66  Add to Quote

1591
SR 5N-7 WHITE
White  SR 5N-7  0.500 - 0.515|0.500  12.7|12.7 - 13.1  0.45  Add to Quote

1594
SR 5P-7 WHITE
White  SR 5P-7  0.500|0.500 - 0.515  12.7|12.7 - 13.1  0.45  Add to Quote

1597
SR 6N-7 WHITE
White  SR 6N-7  0.625  15.9  0.55  Add to Quote

1603
SR 6P-7 WHITE
White  SR 6P-7  0.625  15.9  0.55  Add to Quote

1600
SR 6N3-7 WHITE
White  SR 6N3-7  0.625  15.9  0.55  Add to Quote

1606
SR 6P3-7 WHITE
White  SR 6P3-7  0.625  15.9  0.55  Add to Quote

1612
SR 7P-7 WHITE
White  SR 7P-7  0.750|0.750 - 0.781  19.0|19.0 - 19.8  0.66  Add to Quote

Displaying 1 to 16 (of 16 products) Result Pages:  1
