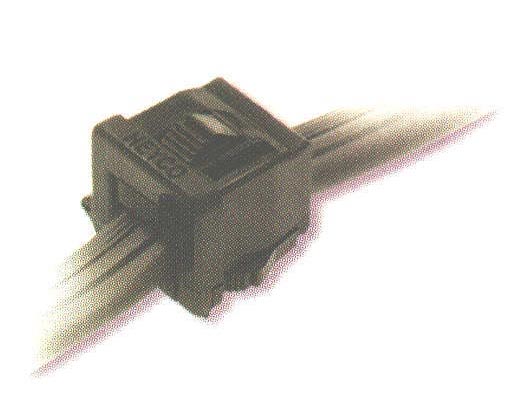

Lockit Strain Relief Bushings

Click the product name or part number below to request a quote.

For Flat Cables - Rectangular Mounting Hole
US Patent No. 4913385
  • Assembly friendly. Independent of insertion into the panel, Lockit Strain Reliefs self-lock onto the cable. Thus, they may be preassembled offline for final assembly at a later time or remote location, for lower installed cost.
  • Lockit Strain Reliefs hold so well they pass the UL pull-out test requirements with or without panel support.
  • They protect the lifeline of your electric/electronic products by absorbing the forces of push and pull that may be exerted on the flexible power cord. And, their rectangular design eliminates the possibility of part rotation under forces of twist.
  • Lockit’s three finger design securely anchors into panel as thin as 0.032 (0.8 mm) and as thick as 0.157" (4.0 mm) for a neat, clean appearance. Five locking steps accommodate a wide range of panel thickness. Low profile head satisfies design aesthetics!
  • Standardize panel design. Fill unused Lockit Strain Relief mounting holes with the Heyco Rectangular Plug RP 115-130 (Part No. 1890).
Filter:
  Product Name  Color  Description  Mounting Hole Size [inches]  Mounting Hole Size [mm]  Thickness [inches]
1829
ST 100N BLACK
Black  ST-100N  0.453 x 0.512  11.5 x 13.0  0.032|0.040|0.048|0.063|0.099  Add to Quote

1834
ST 200N BLACK
Black  ST-200N  0.689 x 0.689  17.5 x 17.5  0.099|0.063|0.126|0.157|0.032  Add to Quote

1847
ST 100L BLACK
Black  ST-100L  0.453 x 0.630  11.5 x 16.0  0.032|0.040|0.048|0.063|0.099  Add to Quote

1830
ST 100N WHITE
White  ST-100N  0.453 x 0.512  11.5 x 13.0  0.099|0.048|0.063|0.032|0.040  Add to Quote

1835
ST 200N WHITE
White  ST-200N  0.689 x 0.689  17.5 x 17.5  0.126|0.157|0.099|0.032|0.063  Add to Quote

1846
ST 100L WHITE
White  ST-100L  0.453 x 0.630  11.5 x 16.0  0.099|0.063|0.048|0.040|0.032  Add to Quote

Displaying 1 to 6 (of 6 products) Result Pages:  1
