Self-Anchoring Nut Retainers

Click the product name or part number below to request a quote.

Tinnerman® Self-Anchoring Nut Retainers offer the same advantages as the preceding Nut Retainers; i.e., high strength, easy to apply for blind fastening locations, self-retention, etc. In addition, this variety provides a unique feature which firmly locks the fastener in the panel, distributing the driving torque through the surround panel area. This is accomplished with a T-shaped capative nut, cleverly devised locking tabs, and mounting legs. It cannot be accidentally dislodged even with excessively rough handling. However, should thread damage occur due to cross-threading or over torquing, it can be deliberately removed without damage to panel or finish. Self-Anchoring Nut Retainers are recommended for applications where fasteners with less permanent retention are apt to be lost due to stacking butting or rough handling of panels on the production line.
Filter:

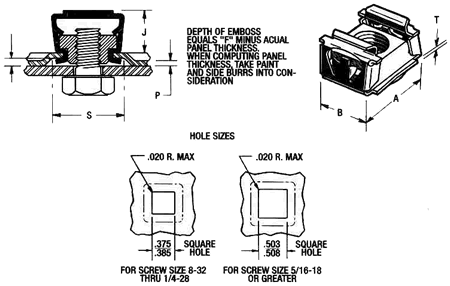

  Product Name  Screw Size  Panel Range (P)  Recc. Hole Diameter (F)  Emboss Sq. (min) (S)  Length (A)
Tinnerman® Self-Anchoring Nut Retainers
D30802-1032
Tinnerman® Self-Anchoring Nut Retainers
11963  .093-.126  0.18  0.62  0.525  Add to Quote

Tinnerman® Self-Anchoring Nut Retainers
D30800-1420
Tinnerman® Self-Anchoring Nut Retainers
43834  .025-.063  0.11  0.62  0.525  Add to Quote

Tinnerman® Self-Anchoring Nut Retainers
D30804-5618
Tinnerman® Self-Anchoring Nut Retainers
43236  .057-092  0.14  0.69  0.718  Add to Quote

Displaying 1 to 3 (of 3 products) Result Pages:  1
