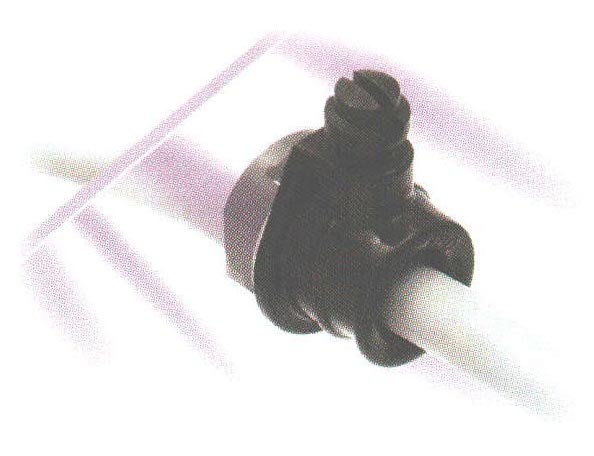

Strain Reliefs USR Series

Click the product name or part number below to request a quote.

For European Requirements
Designed to meet those requirements wherein the Strain Relief device must remain attached to the panel during cable removal or replacement.

US Patent No. 5052643

  • Captive screw cannot be removed from body during cable removal or replacement. (The screw forces the locking flap against the cable.)
  • Reinforcing ribs provide extra strength.
  • Nylon USR-400 series parts may help you comply with IEC Publication #335, CEE #10 and #11; VDE #0720, #0730, and others.
  • Protects your cable against forces of pull, push, twist, and FLEX; prevents use of larger-than-intended cord diameter.
  • Easy panel installation : fingertip pressure locks bushing into 7/8 (22.2 mm) holes with wall thickness up to .125" (3.2 mm).
  • No need for separate cord guard. The bushing cord exit features a bell-mouth contour, radiuses at 1 1/2 times the exit hole diameter.
  • USR-40 uses captive metal screw and USR-400/401 uses captive acetyl screw.
Filter:
  Product Name  Color  Description  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]  Dimension B [inches]
1724
USR 400 BLACK
Black  USR-400  0.875  22.2  0.77  Add to Quote

1726
USR 401 BLACK
Black  USR-401  0.875  22.2  0.77  Add to Quote

1730
USR 40 BLACK
Black  USR-40  0.875  22.2  0.77  Add to Quote

Displaying 1 to 3 (of 3 products) Result Pages:  1
