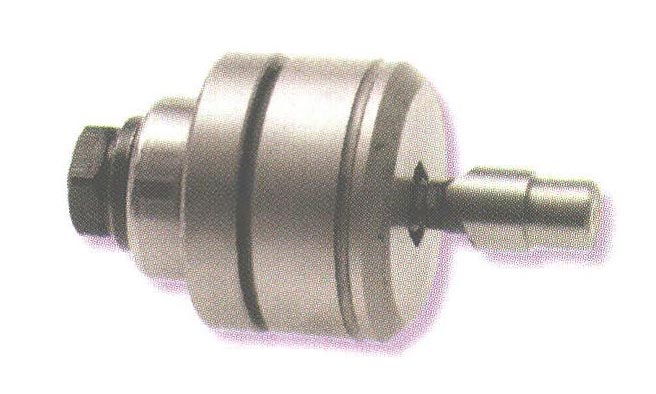

Strain Relief Mounting Hole Punches

Click the product name or part number below to request a quote.

  • Punches Strain Relief mounting holes.
  • Double D" configuration protects your strain relief and cable assembly from the forces of twist.
  • Quick and easy operation.
  • Unique design prevents metal distortion during punching operation.
  • Allows for the punching of mild steel, aluminum, fiberglass, and plastic.
  • Wrench operated.
Filter:
  Product Name  Description  Max. Gage for Mild Steel  Mounting Hole Dia. - A [inches]  Mounting Hole Dia. - A [mm]  Dimension B [inches]
1333
SRP 375-330
SRP 375-330  18 ga.  0.375  9.5  0.33  Add to Quote

1334
SRP 375-345
SRP 375-345  18 ga.  0.375  9.5  0.345  Add to Quote

1335
SRP 437-390
SRP 437-390  18 ga.  0.437  11.1  0.39  Add to Quote

1337
SRP 500-450
SRP 500-450  14 ga.  0.437  11.1  0.45  Add to Quote

1339
SRP 500-460
SRP 500-460  14 ga.  0.5  12.7  0.46  Add to Quote

1340
SRP 500-465
SRP 500-465  12 ga.  0.5  12.7  0.465  Add to Quote

1341
SRP 562-530
SRP 562-530  12 ga.  0.562  14.3  0.53  Add to Quote

1342
SRP 625-550
SRP 625-550  12 ga.  0.625  15.9  0.55  Add to Quote

1344
SRP 750-660
SRP 750-660  12 ga.  0.75  19  0.66  Add to Quote

1345
SRP 875-770
SRP 875-770  12 ga.  0.875  22.2  0.77  Add to Quote

1346
SRP 875-840
SRP 875-840  12 ga.  0.875  22.2  0.84  Add to Quote

Displaying 1 to 11 (of 11 products) Result Pages:  1
